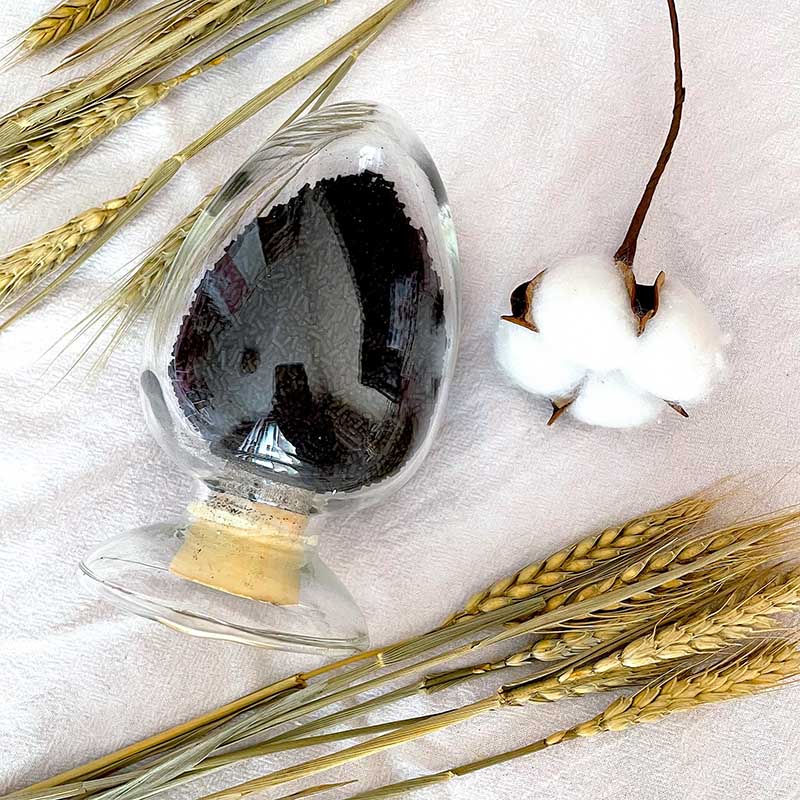

Low Pressure Carbon Molecular Sieve

Low pressure carbon molecular sieve is a specialized CMS grade designed for nitrogen generation systems operating with limited air source pressure. Unlike high-pressure grades, this product features an optimized micropore structure and particle formation process that maintains stable oxygen-nitrogen separation efficiency even under lower adsorption pressures. The low pressure CMS significantly reduces bed resistance and improves gas passage efficiency, which helps minimize the load on air compressors and reduces overall system energy consumption. The product's enhanced regeneration characteristics ensure complete desorption during the depressurization cycle, preventing the buildup of residual oxygen that could affect subsequent adsorption performance. With low pulverization rates and consistent particle size distribution, this CMS provides reliable long-term operation for facilities where energy cost management is a priority and the compressed air system has limited capacity.

Applications for Low-Pressure Systems

The low pressure carbon molecular sieve is specifically recommended for PSA nitrogen generators operating with limited air supply pressure, typically in the 0.5–0.6 MPa range. Primary application areas include low-pressure PSA nitrogen generators, food packaging nitrogen flushing, pharmaceutical intermediate protection, electronic component oxidation prevention, warehouse atmosphere control, small-scale laser cutting protection, and on-site nitrogen systems with limited air source pressure. In each application, the low pressure CMS delivers efficient oxygen-nitrogen separation while maintaining the low pressure drop and energy efficiency required by these systems. The product is also suitable for retrofit applications where replacing existing media with a lower-resistance grade can improve system performance without upgrading the air compressor.

The low pressure carbon molecular sieve achieves its energy-saving characteristics through careful optimization of particle size, pore structure, and bed packing characteristics. The lower bed resistance means the compressor does not have to work as hard to maintain the required adsorption pressure, directly reducing power consumption during each adsorption cycle. The product's low pulverization rate ensures that the bed does not develop increasing resistance over time due to the accumulation of fines, maintaining consistent pressure drop throughout the product's service life. The CMS also exhibits excellent regeneration efficiency at lower pressures, meaning the desorption cycle is complete and does not leave adsorbed oxygen that could reduce the nitrogen purity in subsequent cycles. This combination of low resistance, stable operation, and complete regeneration delivers both energy savings and consistent nitrogen purity.

Guangde Yuanhao Molecular Sieve Co., Ltd. provides application-specific selection support for customers operating low-pressure PSA systems. The company's engineers can review existing nitrogen generator specifications, available air source pressure, target nitrogen purity, and production rate requirements to recommend the appropriate CMS grade and loading recommendations. For low-pressure applications, this technical support helps customers determine whether adjustments to fill quantity, adsorption cycle timing, or tower configuration would improve performance. The company offers sample testing with costs deductible from subsequent bulk orders. Standard product delivery is 3 to 15 days, with custom orders requiring 7 to 30 days. A 1-year warranty is provided under normal operating conditions, and after-sales support includes installation guidance and operational training.
