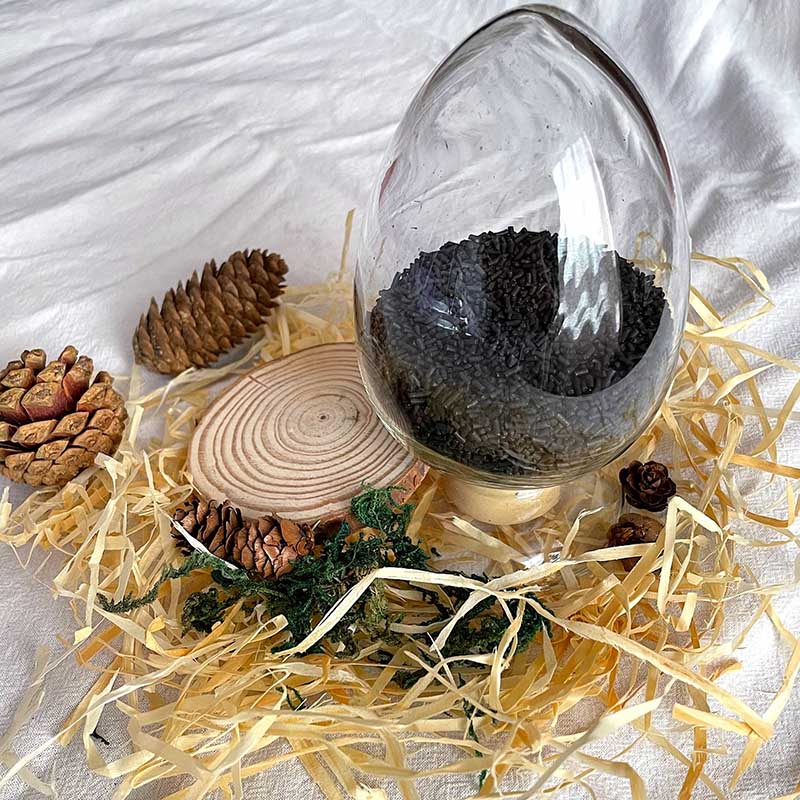

Coarse Particle Carbon Molecular Sieve

Coarse particle carbon molecular sieve is manufactured with a larger pellet diameter, typically 1.3–1.6mm, specifically to address the operational challenges of large-scale industrial nitrogen generation systems. The larger particle size creates higher bed voidage, which significantly reduces airflow resistance through the adsorbent bed. This translates directly to lower pressure drop across the system, reduced compressor energy consumption, and decreased load on downstream filtration equipment. The coarse particle CMS offers substantially higher mechanical strength compared to standard grades, with a crush strength of ≥75N per pellet. This enhanced durability provides superior resistance to gas flow erosion and pressure swing冲击, resulting in extremely low pulverization rates over extended service life. The micropore size distribution remains consistent with standard CMS, ensuring stable nitrogen production and excellent air-to-nitrogen ratios. This grade is specifically engineered for large-volume industrial PSA nitrogen generators operating under continuous, heavy-duty conditions.

Applications for Large-Scale Nitrogen Generation

The coarse particle carbon molecular sieve is designed for high-flow, continuous-duty nitrogen generation systems where pressure drop reduction and extended service intervals are priorities. Typical applications include large metal heat treatment production lines, oil and gas storage tank inerting, chemical reactor oxygen isolation, photovoltaic manufacturing lines, large-scale grain storage pest prevention, coal mine underground nitrogen injection systems, and large wastewater treatment tail gas handling equipment. In each of these settings, the coarse particle CMS delivers reliable nitrogen production while minimizing the system maintenance burden associated with media replacement and filter servicing. The product's enhanced strength and reduced dust generation help protect downstream components, extending the service life of valves, filters, and piping.

The coarse particle carbon molecular sieve achieves its superior mechanical properties through a specialized high-bonding resin formulation and optimized carbonization process. The larger pellet diameter, combined with high crush strength, ensures structural integrity even under high gas flow velocities and rapid pressure cycling. The product exhibits exceptionally low pulverization rates, which significantly reduces dust carryover into system components. This translates directly to longer filter life, reduced valve wear, and extended intervals between bed replacements. The micropore structure is carefully controlled to maintain high oxygen adsorption capacity and stable nitrogen purity across a wide range of operating conditions, from 95% to 99.999% purity. The low ash content further contributes to bed stability by minimizing pore blockage from fine particles.

Guangde Yuanhao Molecular Sieve Co., Ltd. produces coarse particle CMS on fully integrated automated production lines. The company's 25,000-square-meter facility, established in 2010, includes ball mills, continuous carbonization furnaces, extrusion equipment, and analytical testing instruments. Monthly production capacity is 150 tons, with a planned 2027 expansion to 300 tons per month. The company holds National High-Tech Enterprise and Anhui Province Specialized and Sophisticated Enterprise designations, along with ISO 9001, ISO 14001, and ISO 45001 certifications. All production is vertically integrated from raw material handling to finished product screening, ensuring consistent quality across every batch. Each shipment includes a factory test report, and third-party inspections are accepted. The company maintains sufficient inventory to support immediate orders and can expedite large-volume requests.
